CNC Milling

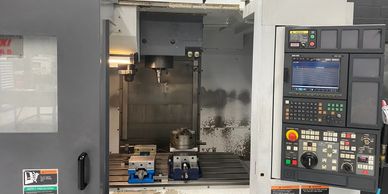

Mori Seiki Duracenter 5

3-Axis Vertical Machining Center

Table Size 43.3" x 23.6"

X-Axis Travel 31.5"

Y-Axis Travel 20.1"

Z-Axis Travel 20.1"

Okuma Genos M560-V

Mori Seiki Duracenter 5

3-Axle Vertical Machining Center

Table Size 51" x 22"

X-Axis Travel 41.33"

Y-Axis Travel 22"

Z-Axis Travel 18.11"

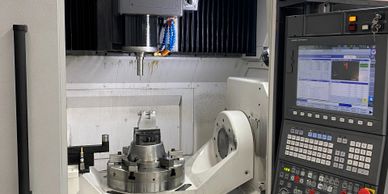

Okuma Genos M460V-5AX

Mori Seiki Duracenter 5

Okuma Genos M460V-5AX

5-Axis Vertical Machining Center

Table Size 15.75 dia.

A-Axis Travel 30.00"

Y-Axis Travel 18.11"

Z-Axis Travel 18.11"

CNC TURNING

Mazak Nexus 200

Mazak Integrex I-200ST

CNC Lathe

Maximum Swing 24.0”
Swing Over Cross Slide 14.0”
Standard Machining Diameter 10.39”
Maximum Machining Diameter 14.0” (Adjacent Pockets Empty)
MAXIMUM MACHINING LENGTH 20.0”

Mazak Integrex I-200ST

The INTEGREX i-200ST advanced Multi-Tasking machine delivers maximum versatility and throughput for medium to large complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups.

This machine configuration features second turning spindle (S) for DONE IN ONE® machining and lower turret (T) - minimizing fixtures, tools, handling and non-cut time.

Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups. With full 5-axis capability, the machine easily processes fully prismatic parts from solid blocks or castings (chucked or bar fed work), round parts, or sculptured parts such as aerospace components.

MACHINE CHARACTERISTICS:

Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
20k RPM (15 HP) milling spindle
Full C-axis contouring (.0001 degree minimum index)
Productive second turning spindle for DONE IN ONE part processing
Added lower turret for machining at either main or second turning spindle
Holds 72 tools
